D-AFAI
configuration

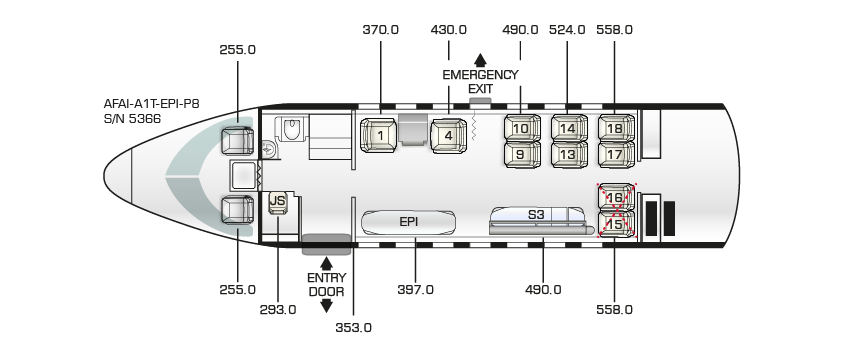

AFAI-A1T-EPI-P8
PAT
1
MED CREW
3
PAX
5
| Heavy Flight Crew | Heavy Med Crew |
|---|---|
| Not considered | Not considered |
| LH FWD | ||
|---|---|---|
| Adapter | 6341-2 | 35,5 kg / 78 lb |
| Spectrum Pwr | 2800-006 2800-016 |
60 kg / 132 lb |
| Epishuttle | EPA-60492-25111000 | 18,6 kg / 41 lb |
| Stretcher | 1201-001 1211-002 1211-003 |
19,1 kg / 42 lb |
| Bulkhead (Cover) | 2,72 kg / 6 lb |
| LH AFT | ||
|---|---|---|
| Adapter | 6341-2 | 35,5 kg / 78 lb |
| Spectrum | 2800-001 | 18,2 kg / 39 lb |
| Med Wall | EPA-60473-25111000 | 45 kg / 99 lb |
| Stretcher | 1201-001 1211-002 1211-003 |
19,1 kg / 42 lb |
